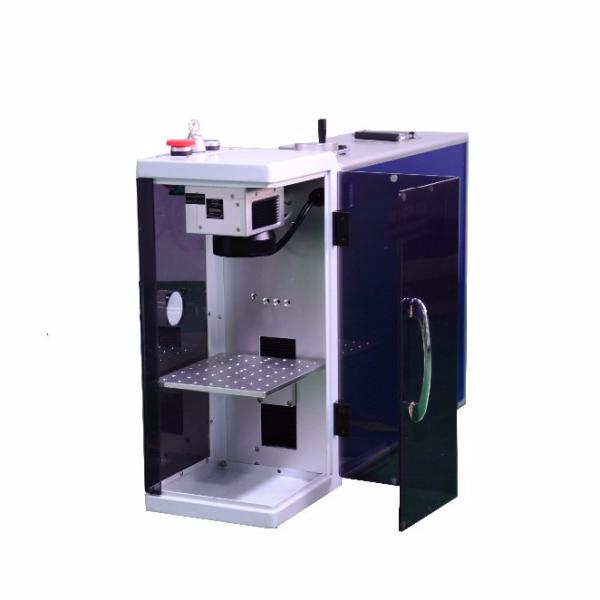

3W Green Laser Source Portable Fiber Laser Marking Machine

  • 1
  • 2
  • 3

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200-500 Sets/Month

Delivery Time : 5-7 working days

Packaging Details : Wooden cases standard export package

Name : Green Laser Marking Machine

Application : Laser Marking

Laser Type : Green Laser

Working Accuracy : ±0.001mm

Condition : New

CNC or Not : Yes

Cooling Mode : Air Cooling

Laser Wavelength : 532nm

Laser Power : 3W

Dimension(L*W*H) : 700x245x460mm

Marking Speed : ≤7000mm/s

Min Liner Width : 0.05mm

Working area : 70x70mm 110x110mm(optional)

Applicable : Crytal ,Metal,plastic,Hard Plastic

Contact Now

3W Green Laser Source Portable Fiber Laser Marking Machine

Model

LB-MG3

Laser Power

3W

Laser Wavelength

532nm

Beam Quality

M2≤1.2

Laser Repetition Frequency

20KHz~200KHz

Working Area

110x110mm

Marking Speed

≤7000mm/s

Min. Line Width

0.03mm

Repeated Precision

±0.001mm

Cooling System

Air-cooling

Power Supply

220V / 50Hz

Power Consumption

0.8KW

Dimension

700x245x460mm

Standard Accessories (Portable Fiber Laser Marker)


(1) A set of 3W Green Laser Source
(2) A set of Digital Scanning System
(3) A set of high-speed Scan Lens (Singapore Ronar-Smith)
(4) 110mm x110mm Fiber Focus Lens (Singapore Ronar-Smith)
(5) A set of Laser Beam Expanders (Singapore Ronar-Smith)
(6) Motion control card
(7) A set of marking control system
(8) A set of marking software
(9) A pedal switch
(10) Working table(200mmX150mm)
(11) Laser power supply

(12) "Operation instruction","Training Video”

Machine Features

1. Laser device belongs to cold light source, small heating area, and excellent beam quality to create ultra-fine marking effects.

2. Tidy borders, no explosion point, no thermal deformation, it can effectively increase the rate of finished products.

3. Laser device with stable performance, long service life, maintenance-free, no consumables, and low operation cost.

4. Adopted imported scanning galvanometer with fast marking, the smallest spot can reach 15um after focusing, it is extremely suitable for micro cutting and drilling.
